Cavicchio Jukebox - Finally Done !
« on: December 06, 2009, 05:03:53 AM »
Hello & Happy Holidays!

Well I finally finished my 1st Jukebox project !

The entire cabinet was hand made by myself. (150+ photos). Since this wasn't a kit, the plastic arch had to be hand formed by myself from sheets of white polycarb. Black Plexi covers the enitre cabinet front.

Dimensions are approx. 32" H x 20" W x 13" D (inches).

I utilized an older P4-3ghz Processor, 1Gig ram, 256mb AGP card, 300 watt power supply running Windows XP.

Created all the graphics using a trial version of Photoshop CS4.

I'm sure we all recognize the software.  ;D

17" ELO Touchscreen purchased used on Ebay.

Audio is a standard 2.1 computer speaker set-up. I think it's 18W sub + 3W per channel. (pretty loud for home use)
Master volume & bass controls on back panel.

Since I didn't have access to a vacuum press, and I'm a newbie with veneer, it took 2 attempts to get the veneer wrinkle & bubble free.

As you can see, I kept the design of a Wurlitzer 1015 in mind.  Sorry no bubbles tubes, maybe next time.

A special thanks to all those members who took the time to answer my endless stream of questions. It surely helped.

Enjoy the pics !

Barry B. Your software is wonderful...

Happy Holidays!


« Last Edit: July 20, 2013, 04:38:18 AM by caesar »

Offline Novalak

  • Freebox Lifetime Supporter
  • Hero Member
  • ********
  • Posts: 682
  • Fu: +0/-0
Re: Cavicchio Jukebox - Finally Done !
« Reply #1 on: December 06, 2009, 08:02:42 PM »
upload to an image host and attach the files here

Offline caesar

  • Freebox V5 Supporter
  • Newbie
  • *****
  • Posts: 43
  • Fu: +1/-0
Re: Cavicchio Jukebox - Finally Done !
« Reply #2 on: December 07, 2009, 05:23:25 AM »
Here's the finished pics !





























« Last Edit: July 20, 2013, 04:51:20 AM by caesar »

Offline caesar

  • Freebox V5 Supporter
  • Newbie
  • *****
  • Posts: 43
  • Fu: +1/-0
Re: Cavicchio Jukebox - Finally Done !
« Reply #3 on: December 07, 2009, 05:41:53 AM »
Here's the build... Please wait for pics to load...
Thanks!





























$1.99 Gutter Guard Screen for venting.









My 2nd piece of veneer.  :(      I guess you could say the first piece was a test...
Did you know that most wood veneer is only 1/42 of an inch thick?





I found these 50% off after Christmas @ Lowes last year. I just removed the outer lightbulb shaped plastic to make them fit. Alot cheaper than a custom programmable controller. (maybe down the road I'll upgrade)


Cavicchio Jukebox - Lighting Demo










Forgot to take a photo of the speakers before I disassembled them. So I included the mfg. photo.

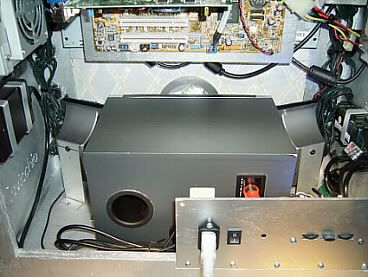

I actually cut down the height of the left & right speakers.
